Analog Channel Native v7

What the Native edition delivers

Analog Channel Native v7 is the CPU-based Native edition in McDSP’s Analog Channel line. It is intended for AAX Native, AU and VST3 hosts rather than AAX DSP processing. That makes it relevant to producers working across Pro Tools, Logic Pro, Ableton Live, Cubase, Studio One and other compatible DAWs without requiring an HDX card.

The live listing identifies AC101 – Emulates analog channel amplifier circuits, Two activations per license / subscription and Zero Latency Algorithms. Those details describe this Native v7 offer; they should be checked again when changing computer, host format or licence location.

CPU-first session design

Evaluate Analog Channel Native v7 inside a normal working project with the same buffer, oversampling choices and background instruments used in production. A plug-in that feels light in an empty test can behave differently across many channels, while one carefully placed instance may be more efficient than several generic processors solving the same job.

Keep an eye on real-time CPU spikes rather than average load alone. Freeze or print expensive creative chains after the sound is approved, and reserve live instances of Analog Channel for parameters that still need automation. This keeps the session responsive without turning every mix choice into an irreversible render.

How producers can use it

Where it fits in a production for Analog Channel Native v7 include parallel saturation, drum colour and vocal transitions. Judge harmonic density, filtering, level compensation and the point where useful character becomes masking or fatigue in the full arrangement, because the musical value of the processor depends on the space around the source.

Begin in parallel or at a restrained drive setting, match level, and decide which harmonic range improves translation. For Analog Channel Native v7, Automate stronger states for transitions instead of forcing one extreme texture across the entire track. Save the successful state under the track role rather than the preset name. A label such as “lead vocal control” or “drop bus tone” communicates more during recall than a manufacturer preset whose original purpose is forgotten.

Automation and recall on modern systems

Write automation from a saved static state, avoid needless parameter density and print any fragile sound-design move. McDSP states that v7 is optimised for current Apple silicon and Intel processors; the practical benefit still depends on host version, buffer, session size and the specific control movement used by Analog Channel Native v7.

Store the installer, plug-in version and iLok location with the project notes. When reopening a mix after an update, compare against a bounced reference before accepting changed defaults or preset behaviour. A stable recall is part of the sound, not just an administrative detail.

Collaboration and rendering strategy

For a collaboration built around Analog Channel Native v7, agree on the plug-in version and host format before exchanging the first editable session. If the other producer does not own the same Native licence, send both a processed stem and a dry or minimally processed source beginning at the same timestamp. Include the musical intention—such as drum colour—rather than only a screenshot of settings. The collaborator can then preserve the purpose with another tool if necessary. When the project returns, compare the replacement against the approved reference at equal loudness before restoring a live McDSP instance.

AC101 and AC202 solve different analogue-colour jobs

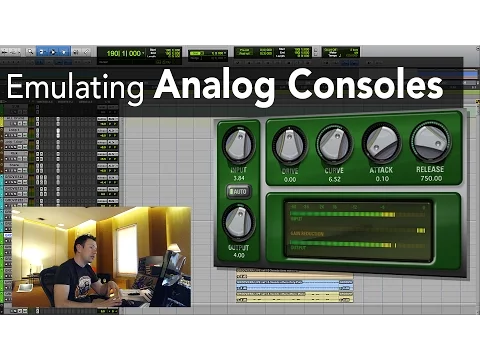

Analog Channel Native v7 contains two related processors rather than one generic “warmth” control. McDSP describes AC101 as a digital preamp and channel-amplifier design whose Drive control places the signal within a saturation and compression region. AC202 is the tape-machine side of the family, with bias, playback speed, equalisation, head choice, tape formulation and saturation-recovery controls. Treat those as separate starting points: AC101 for channel-stage density and AC202 for tape-style frequency, transient and recovery behaviour.

Duplicate a representative source, level-match both configurations and write down the problem each version solves. If AC101 gives a vocal or synth the required forward motion, do not add AC202 merely because both are included. If AC202 controls a brittle drum bus while preserving punch, save the exact speed, bias and head native settings with the session.

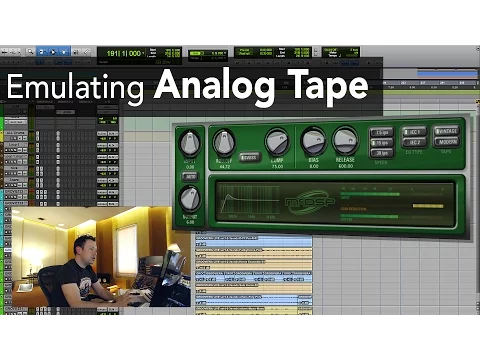

A practical AC202 tape-speed and low-end test

AC202 exposes 7.5, 15 and 30 ips playback speeds while allowing low-frequency roll-off and head bump to be adjusted independently of speed. That independence is useful because a producer can contrast the speed-dependent high-frequency and saturation behaviour without accepting a fixed bass response. Begin with the same drum, bass or full-mix passage at each speed, match output level and leave the extra low-frequency controls neutral for the first pass.

Next adjust roll-off and head bump while kick and bass play together. Listen for low-end separation, not simply more sub energy. McDSP’s own product guidance highlights rumble removal and bass/snare separation as AC202 applications. A focused lower octave that leaves the transient readable is usually more valuable than the largest visible head-bump curve.

Bias, tape formulation and recovery time

For the Native build, the AC202 controls extend beyond a fixed tape preset. Bias and selectable IEC1 or IEC2 equalisation alter the operating context, while playback-head and tape-formulation choices provide contrasting responses. Saturation recovery time affects how quickly the process returns after dense or loud material. Test that recovery over a verse-to-drop transition or a drum fill; a native setting that flatters one sustained chord may make the next transient feel late or overly thick.

Change one tape variable at a time and use the automatic output-level function only as a convenience, not as proof of perfect loudness matching. Print a short reference after every meaningful configuration. Names such as “15 ips tight low end” or “30 ips open vocal” preserve the reason for the choice better than an unspecific favourite preset.

When Analog Channel is the right specialist

Analog Channel is most useful when saturation, channel-stage compression or tape-style low-frequency shaping is the actual production task. It is not a substitute for corrective EQ, transparent dynamics or final delivery metering. Compare AC101 with a clean gain stage when the audio source only needs level, and contrast AC202 with an uncoloured reference when tape character starts to narrow the transient or soften stereo detail.

Within McDSP, Channel G and 6050 provide broader channel-strip structures, while CompressorBank and FilterBank focus on dynamics and equalisation. For a CPU-based project, select Analog Channel Native v7 when the dedicated AC101/AC202 controls reach a repeatable colour faster. Keep the related-edition links separate from sonic conclusions: Native, HD and upgrade pages describe licence paths, while the AC101 and AC202 test determines whether the family belongs in the mix template.

Scaling AC101 and AC202 across a Native production

For the Native build, the Native offer suits CPU-based AAX Native, AU and VST3 sessions. Test the cost of several realistic AC101 channel instances plus one or two AC202 bus instances at the normal production buffer. Watch short real-time CPU peaks while the arrangement is busiest; average native processor use can hide the moment that interrupts playback or a vocal recording.

Once a colour decision is approved, freeze or print non-automated layers and keep live Analog Channel instances on buses or tracks that still need arrangement changes. For Native production, this preserves the family’s analogue-style CPU-based workflow without turning every channel into permanent real-time processing.

Sources and related McDSP pages

For Analog Channel Native v7, AudiobyRay checks the live Plugin Boutique offer and uses McDSP’s official catalogue, support page and download area for context about the Analog Channel line. Relationships around Analog Channel come from discovered source links and the verified brand connection, not from keyword similarity alone.

From Analog Channel Native v7, continue to matching editions, relevant McDSP bundles and processors that address parallel saturation or drum colour. Recheck Analog Channel Native v7 availability, compatibility and upgrade terms at the destination because those commercial details can change after this guide’s verification date.
