6050 Ultimate Channel Strip HD v7

6050 Ultimate Channel Strip HD v7 in an HDX workflow

6050 Ultimate Channel Strip HD v7 is the HD edition of the 6050 Ultimate Channel Strip family. McDSP positions current HD licences for AAX DSP users while retaining AAX Native, AU and VST3 access. That distinction matters most in Pro Tools HDX sessions where DSP placement, voice use and predictable tracking behaviour are part of the system design, not merely another format badge.

The current product facts include Two activations per license / subscription, Zero Latency Algorithms and Over 25 EQ, compressor, gate, expander, saturator, and filter modules. Treat those as checkpoints for this exact HD SKU. They do not mean that every host runs the DSP instance or that an HD purchase is automatically useful to a producer who works entirely on native CPU.

Planning DSP and native instances

Build a deliberate split between DSP-critical and CPU-native processing before loading 6050 Ultimate Channel Strip HD v7 across a template. Tracking inputs, low-latency cue paths and large post-production sessions may justify DSP allocation; offline sound-design chains and flexible mix experiments can remain native. The goal is stable routing, not filling every available chip because the licence permits it.

When 6050 Ultimate Channel Strip moves between DSP and Native, store a named reference preset and print a short comparison. Confirm automation, side-chain routing, delay compensation and overs after the switch. A technically successful plug-in conversion can still alter session resources or monitoring behaviour in ways that matter during a vocal take or a time-sensitive recall.

Production role and musical decisions

For this processor, useful jobs include fast tracking decisions, drum shaping and mix-template consistency. Listen specifically for signal-flow order, input gain, filtering, equalization and dynamics as one repeatable channel workflow. A repeatable HDX workflow begins with one audible objective and a bypass level that makes the result honest.

Set input level first, remove clearly unwanted bandwidth, then decide whether dynamics or equalization should lead the tonal change. For 6050 Ultimate Channel Strip HD v7, Save a source-specific starting state instead of a one-size-fits-all strip preset. Apply that method to 6050 Ultimate Channel Strip HD v7 on the source that creates the real mix problem, then save a restrained state and a stress-test state. The contrast reveals whether the algorithm improves the record or only produces an impressive soloed effect.

Compatibility and authorisation

McDSP currently lists AAX DSP, AAX Native, AU and VST3 for HD plug-ins. Version 7 no longer supports legacy VST. Current support covers listed macOS and Windows versions, Intel and Apple silicon, but a production machine should be checked against the live support page before an OS or DAW upgrade.

6050 Ultimate Channel Strip HD v7 uses iLok authorisation, and current v7 licences include two activations. A compatible USB iLok, supported machine activation or iLok Cloud may be available depending on the installed version and workflow. Two activations do not create two simultaneous Cloud sessions, so document the actual licence location before moving between rooms.

HD recall and handoff notes

Before delivering a session that relies on 6050 Ultimate Channel Strip HD v7, create a compact recall package: a screenshot or preset, a processed reference, an unprocessed fallback and a note identifying which instances use AAX DSP. Ask the receiving room whether its HDX generation, installer and iLok setup match the originating system. If they do not, render the time-critical path and leave the editable Native alternative disabled beside it. This approach keeps fast tracking decisions reproducible while preserving options for later revisions. It also prevents a last-minute transfer from becoming an experiment with DSP allocation, missing licences or unverified software updates.

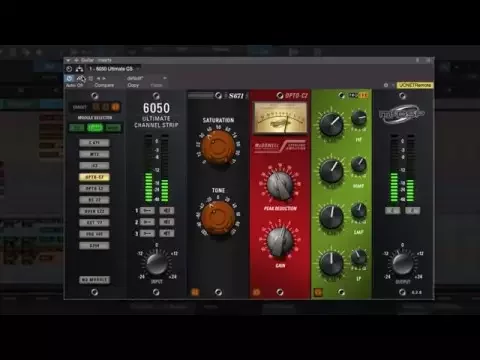

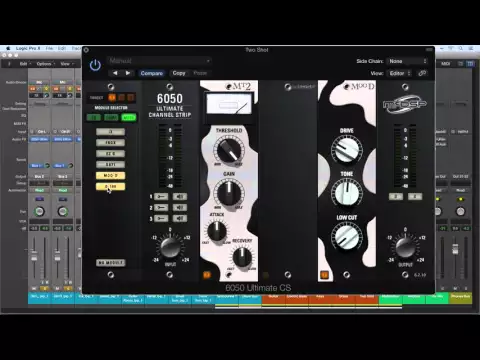

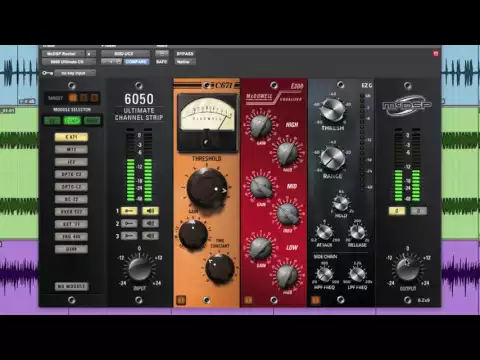

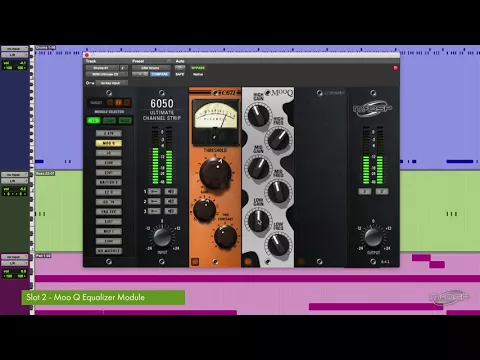

Three module bays define the 6050 workflow

6050 Ultimate Channel Strip HD v7 places three reorderable module bays between dedicated input and output stages. McDSP includes more than 25 choices spanning equalisation, compression, gates, expansion, saturation and specialised filtering. Within the HD edition, the value is not simply the module count: three positions force a producer to decide which stages belong together and in what order. Begin with one module, solve the largest problem, then add a second or third only when the next processing decision is clearly different.

Save the same three modules in contrasting orders and level-match the results. A filter before compression changes what the detector receives; a saturator before EQ changes the harmonics being shaped; a gate before ambience control behaves differently from a gate after tone enhancement. Name the preset with the signal flow so the chain remains understandable outside the current session.

Auditioning modules without losing the mix decision

In the HD edition, the selector panel and drag-and-drop layout are designed for fast comparison. With the HD edition, use that speed inside a fixed test rather than scrolling until something sounds louder. For an HDX project, choose a drum, bass, vocal or synth passage, define one task and shortlist two modules from the same category. Keep their output levels aligned, switch on the busiest musical section and write down the reason one layout wins.

Relative control positions do not guarantee an equivalent curve or envelope when the underlying model changes. After replacing an EQ or compressor module, reset the gain comparison and check the whole three-stage chain. Within the HD edition, the most dramatic module may be less useful once the track source returns to the arrangement.

Building a compact producer channel strip

For a vocal, a practical 6050 chain might start with filtering or broad EQ, continue with controlled compression and finish with restrained saturation. For programmed drums, transient or gate behaviour may belong before a character compressor; for bass, low-frequency shaping should be checked against the kick before drive is added. These are audition routes, not universal presets. Each track source should earn its own module and position.

Limit a template to a few named chains such as “clean vocal control”, “tight drum bus” and “synth colour”. Within the HD edition, the 6050 becomes faster when the default state is intentionally small. A channel strip that opens with three extreme processors can create more diagnosis work than three separate plug-ins whose purposes are obvious.

6050, 6020, 6030 and 6060 compared

In the HD edition, the 6050 includes the EQ and compressor ideas associated with the 6020 Ultimate EQ and 6030 Ultimate Compressor, then adds other channel-strip categories inside three bays. Within the HD edition, the 6060 offers the broader module collection when a HDX session needs more individual module choices. For an HDX project, choose 6050 for a repeatable compact chain, 6020 or 6030 when one processing category deserves the whole interface, and 6060 when module breadth is the main reason for loading the product.

Do not count overlapping modules as four independent studio needs. Compare workflow, recall and CPU or DSP placement on the same source. If one focused HD processor reaches the decision faster, the larger collection is not automatically the better insert.

Designing a 6050 HDX channel path

In the HD edition, the HD edition adds AAX DSP placement for supported Pro Tools systems. Reserve DSP chains for live inputs, cue-critical routing or HDX session scale that genuinely benefits from the hardware path. Test the intended three-module order on DSP, then copy it to a Native instance and verify automation, side-chain routing, delay compensation and printed level.

Module changes can alter resource use and downstream headroom. Store the exact bay order and a fallback render before multiplying the strip across an HDX template.

Sources and related McDSP pages

For 6050 Ultimate Channel Strip HD v7, AudiobyRay checks the live Plugin Boutique offer and uses McDSP’s official catalogue, support page and download area for context about the 6050 Ultimate Channel Strip line. Relationships around 6050 Ultimate Channel Strip come from discovered source links and the verified brand connection, not from keyword similarity alone.

From 6050 Ultimate Channel Strip HD v7, continue to matching editions, relevant McDSP bundles and processors that address fast tracking decisions or drum shaping. Recheck 6050 Ultimate Channel Strip HD v7 availability, compatibility and upgrade terms at the destination because those commercial details can change after this guide’s verification date.
