AE400 Active EQ HD v7

AE400 Active EQ HD v7 in an HDX workflow

AE400 Active EQ HD v7 is the HD edition of the AE400 Active EQ family. McDSP positions current HD licences for AAX DSP users while retaining AAX Native, AU and VST3 access. That distinction matters most in Pro Tools HDX sessions where DSP placement, voice use and predictable tracking behaviour are part of the system design, not merely another format badge.

The current product facts include Zero Latency Algorithms, Ultra-Low latency and McDSP plugins run natively on Intel and M1 Apple Silicon processors. Treat those as checkpoints for this exact HD SKU. They do not mean that every host runs the DSP instance or that an HD purchase is automatically useful to a producer who works entirely on native CPU.

Planning DSP and native instances

Build a deliberate split between DSP-critical and CPU-native processing before loading AE400 Active EQ HD v7 across a template. Tracking inputs, low-latency cue paths and large post-production sessions may justify DSP allocation; offline sound-design chains and flexible mix experiments can remain native. The goal is stable routing, not filling every available chip because the licence permits it.

When AE400 Active EQ moves between DSP and Native, store a named reference preset and print a short comparison. Confirm automation, side-chain routing, delay compensation and overs after the switch. A technically successful plug-in conversion can still alter session resources or monitoring behaviour in ways that matter during a vocal take or a time-sensitive recall.

Production role and musical decisions

For this processor, useful jobs include kick-and-bass separation, broad tonal balance and automated filter movement. Listen specifically for band interaction, filter slope, gain staging and the musical difference between narrow repair work and broad tonal moves. A repeatable HDX workflow begins with one audible objective and a bypass level that makes the result honest.

Start with level-matched bypass, identify the audible problem in the full arrangement, and decide whether a filter, shelf or bell is the smallest effective move. For AE400 Active EQ HD v7, Sweep only to locate an issue; return to a musically judged gain and bandwidth. Apply that method to AE400 Active EQ HD v7 on the source that creates the real mix problem, then save a restrained state and a stress-test state. The contrast reveals whether the algorithm improves the record or only produces an impressive soloed effect.

Compatibility and authorisation

McDSP currently lists AAX DSP, AAX Native, AU and VST3 for HD plug-ins. Version 7 no longer supports legacy VST. Current support covers listed macOS and Windows versions, Intel and Apple silicon, but a production machine should be checked against the live support page before an OS or DAW upgrade.

AE400 Active EQ HD v7 uses iLok authorisation, and current v7 licences include two activations. A compatible USB iLok, supported machine activation or iLok Cloud may be available depending on the installed version and workflow. Two activations do not create two simultaneous Cloud sessions, so document the actual licence location before moving between rooms.

HD recall and handoff notes

Before delivering a session that relies on AE400 Active EQ HD v7, create a compact recall package: a screenshot or preset, a processed reference, an unprocessed fallback and a note identifying which instances use AAX DSP. Ask the receiving room whether its HDX generation, installer and iLok setup match the originating system. If they do not, render the time-critical path and leave the editable Native alternative disabled beside it. This approach keeps kick-and-bass separation reproducible while preserving options for later revisions. It also prevents a last-minute transfer from becoming an experiment with DSP allocation, missing licences or unverified software updates.

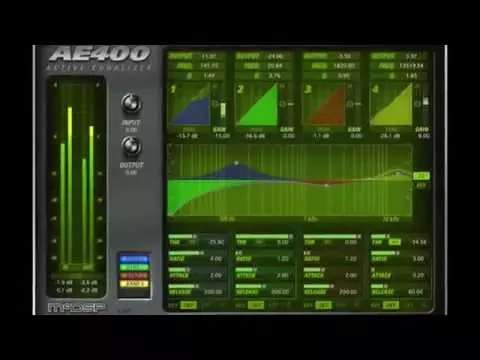

Four fully overlapping fixed and active bands

AE400 Active EQ HD v7 provides four EQ bands that can all cover the same frequency territory. Each band has its own Q, fixed gain and active gain, so one band can establish the constant curve while its dynamic component moves only when the key signal crosses the intended condition. Overlap is useful when separate detectors need to address different behaviours in a nearby region, but it also makes undocumented duplication easy.

For the HD edition, start with one band. Set the fixed curve at matched loudness, bypass it, then add only enough active gain to solve the intermittent part of the problem. Name the band by role—such as “vocal edge”, “bass bloom” or “snare ring”—before enabling a second band in the same area.

Key-filter Q and detector selectivity

Every AE400 band has a key filter whose selectivity follows the Q control. A narrow key can focus on a resonance or note; a broader key can respond to a wider tonal condition. Monitor the band key signal and sweep only until the actual trigger becomes obvious. Return to a bandwidth that includes the complete problem without pulling unrelated harmonics into the detector.

On a vocal, distinguish a short upper-mid edge from permanent brightness. On bass, isolate the note or low-frequency build-up that appears only in some sections. On a drum bus, confirm that a ringing snare does not make the band react to every cymbal hit. Detector precision should reduce unnecessary motion rather than create a visually narrow curve for its own sake.

Threshold, attack, release and active gain

In the HD edition, the active response is shaped by threshold, attack and release. Set threshold using the peak key-signal readout as a starting point, then verify it against several events. Attack determines whether the band catches the front edge or lets it through; release determines whether the correction follows one event or drags into the next phrase. Active gain decides how far the curve moves once triggered.

With the HD edition, use a restrained maximum range first. Fast attack and deep negative active gain can make a resonance disappear but may hollow the transient. Slow release can turn an intermittent correction into a nearly static cut. Save a stress-test setting, then back off while the mix plays until the correction remains audible mainly when bypassed.

Ratio as AE400 response sensitivity

In the HD edition, the AE400 adds a ratio control that determines how input level relates to the move toward maximum active equalisation. That is different from DSP setting only a threshold and range. A lower-sensitivity response can make the band move progressively across varied performances, while a steeper response can reserve most of the change for the strongest events.

Hold threshold and active gain constant while comparing ratios. With the HD edition, use a passage with weak, medium and strong triggers, then watch and listen to how the band scales. For an HDX project, choose the response that follows the musical problem without turning every small level change into tonal modulation.

Internal input versus external side chain

Each band can trigger from the input or a selected side-chain signal. Internal detection suits self-correcting resonance, harshness and tonal build-up. External triggering allows another track to create spectral space: for example, a kick can reduce a narrow bass region or a lead vocal can move a competing instrument only while the phrase is present.

Label and print the trigger track source with the preset. Compare a conventional full-band side-chain compressor with the AE400 band at matched perceived depth; the active EQ should win only when selective movement preserves more of the target. Check latency, routing and offline bounce before relying on an external key in a shared session.

Band linking, bypass and response-plot control

AE400 bands can be adjusted from the response plot or text readouts, and the imported features include individual bypass plus band linking. With the HD edition, use linking for deliberate related moves, such as matched stereo or coordinated tone bands, then unlink before a source-specific fine adjustment. Confirm what is linked instead of assuming every parameter follows.

Bypass one band at a time and A/B-test the fixed and active contributions separately. Input and output controls should keep the complete instance level-matched. A moving graph can encourage excessive correction; a credible DSP setting still improves the full arrangement when the display is no longer the centre of attention.

AE400 on an AAX DSP path

In the HD edition, the HD edition adds AAX DSP support for compatible Pro Tools systems. Reserve DSP instances for live vocals, dialogue, instrument inputs or large sessions whose detector routing benefits from hardware allocation. Test all four key sources, band links, response timing, automation and printed level on DSP, then A/B-test a matched Native instance.

Archive the side-chain map and a processed reference. A receiving HDX room needs the trigger routing and active ranges as well as the DSP-capable plug-in preset to recreate the tonal movement.

An HD four-band routing test

Build one DSP example with an internal vocal-resonance band, an externally keyed bass band, a linked stereo tone pair and a spare bypassed band. Run it at the production sample rate while the real HDX HDX session is loaded. Verify that every key reaches the intended detector, that link changes do not overwrite a source-specific DSP setting and that automation survives a DSP-to-Native move.

Print the key transitions and keep the untreated playlist. In an HDX context, this exposes routing and resource problems that a static single-band preset cannot reveal.

Sources and related McDSP pages

For AE400 Active EQ HD v7, AudiobyRay checks the live Plugin Boutique offer and uses McDSP’s official catalogue, support page and download area for context about the AE400 Active EQ line. Relationships around AE400 Active EQ come from discovered source links and the verified brand connection, not from keyword similarity alone.

From AE400 Active EQ HD v7, continue to matching editions, relevant McDSP bundles and processors that address kick-and-bass separation or broad tonal balance. Recheck AE400 Active EQ HD v7 availability, compatibility and upgrade terms at the destination because those commercial details can change after this guide’s verification date.
