McDSP 4020 Retro EQ v7

4020 Retro EQ edition overview

McDSP 4020 Retro EQ v7 is the family-level guide for McDSP’s 4020 Retro EQ product. It connects the current Native, HD and upgrade listings so producers can understand the processor first and choose the correct commercial edition second. The overview is not itself evidence that every linked SKU carries the same eligibility or host format.

Verified listing themes include High definition updated user interfaces, Double Precision Processing and Variable Q/slope Shelving and Parametric EQ. Use those anchors to compare the child offers, then recheck the exact live page before purchase.

What the processor family is designed to do

The 4020 Retro EQ line is a McDSP equalizer and tone-shaping plug-in. Its most relevant studio roles include corrective equalization, resonance control and kick-and-bass separation. The useful evaluation focus is band interaction, filter slope, gain staging and the musical difference between narrow repair work and broad tonal moves.

Start with level-matched bypass, identify the audible problem in the full arrangement, and decide whether a filter, shelf or bell is the smallest effective move. For McDSP 4020 Retro EQ v7, Sweep only to locate an issue; return to a musically judged gain and bandwidth. This family-level test should happen before licence comparison. If the processing approach does not solve a recurring musical or technical problem, Native-versus-HD differences are unlikely to change the conclusion.

Native, HD and upgrade paths

Native v7 targets CPU-based AAX Native, AU and VST3 systems. HD v7 additionally supports AAX DSP for compatible Pro Tools HDX workflows while retaining the Native formats listed by McDSP. Upgrade offers require the stated qualifying v6 licence and should not be treated as complete first-time licences.

Choose the edition by host, routing and entitlement. An Ableton Live or Logic producer normally evaluates the Native-compatible format; an HDX studio may value DSP placement; an existing v6 owner may qualify for a migration price. The McDSP 4020 Retro EQ v7 overview keeps those decisions attached to the same verified family.

Comparing value without counting features

Assess McDSP 4020 Retro EQ v7 against tools already available in the studio. Give practical weight to faster decisions, reliable recall and a distinctive processing result. Give less weight to modes that do not enter real sessions, duplicated bundle licences or an upgrade price for which the account is not eligible.

For bundles, list which included processors would be used immediately and whether they overlap individual licences. For a single processor, compare one demanding source at equal level. This prevents a sale banner or collection size from replacing an engineering decision.

How to use this product hub

Return to McDSP 4020 Retro EQ v7 when comparing a family member with a bundle, planning a studio migration or checking which edition belongs in a collaboration. Start from the musical job, move to the compatibility map, and open the child offer only after the required licence path is clear. If kick-and-bass separation becomes the priority, follow the verified related-product links rather than using a broad site search. That sequence gives the 4020 Retro EQ hub a lasting reference purpose and reduces the chance of buying an ineligible upgrade, an unnecessary HD licence or a duplicate bundle component.

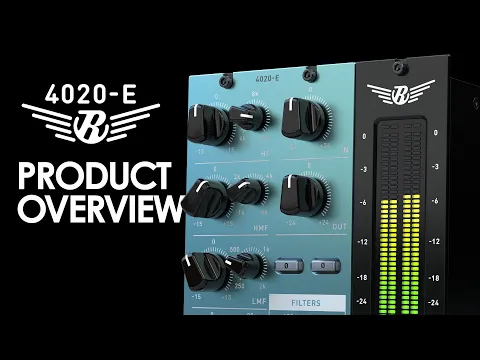

4020 band layout and variable-Q behaviour

McDSP 4020 Retro EQ v7 centres on four EQ bands plus dedicated high-pass and low-pass filtering. Across the product family, the high and low bands are shelves, while the two middle bands are parametric. McDSP describes a gain-dependent slope and Q response: larger boosts or cuts become more selective, so the same control can move from broad tone shaping toward focused correction as gain increases. That behaviour is the defining production idea to test. Begin with modest moves and watch how the bandwidth changes before reaching for another EQ.

At family level, the filters use a split-octave design, beginning around a 12 dB-per-octave slope near the selected point and reaching a steeper maximum farther into the rejected range. On kick, bass or vocal recordings, this can remove unwanted extension without behaving like a single fixed-slope filter. Audition the transition band, not only the spectrum below or above it.

Useful 4020 test source tests

On a bass channel, pair a restrained low shelf with a complementary low-mid cut and listen for weight that remains readable beside the kick. On vocals, evaluate a gentle high shelf against a smaller upper-mid move; the best comparison setting adds clarity without turning consonants into the loudest part of the phrase. Drum overheads and synth buses reveal another side of the 4020: the shelves can shape overall colour while the parametric bands remove a narrow boxy or abrasive area.

Because the curve changes with gain, copy one comparison setting and halve every boost or cut. Level-match both versions. Across the product family, the quieter curve may preserve more depth and transient balance even when the larger comparison setting sounds initially impressive.

Output stage and saturation context

At family level, the 4020 belongs to McDSP’s Retro line, which combines original algorithms with analogue-saturation modelling and a designed output stage rather than presenting a direct clone of one named hardware EQ. Across the product family, the anti-clip topology is part of the advertised character, but it is not permission to ignore headroom. Drive level can alter harmonic density and perceived smoothness, so an EQ comparison should include both input and output meters.

For parallel tone work, print a clean version and a deliberately driven version of McDSP 4020 Retro EQ v7. Blend only after matching the low-frequency phase and checking mono. In the family overview, this separates the value of the EQ curve from the value of the output colour.

Where the 4020 differs from the 6020

At family level, the 4020 offers one coherent four-band design with continuously related controls. Across the product family, the 6020 is a module collection with multiple EQ personalities. At the family level, select the 4020 when a repeatable layout and gain-dependent curve are more useful than switching models; evaluate the 6020 when the evaluation project needs clearly different topologies from track to track. Neither option is universally broader or better. For a template, the faster interface may win. For exploratory sound shaping, a module library may justify the extra choice.

Keep this distinction visible when following related McDSP links so the two Ultimate and Retro products do not become interchangeable affiliate descriptions.

Sources and related McDSP pages

For McDSP 4020 Retro EQ v7, AudiobyRay checks the live Plugin Boutique offer and uses McDSP’s official catalogue, support page and download area for context about the 4020 Retro EQ line. Relationships around 4020 Retro EQ come from discovered source links and the verified brand connection, not from keyword similarity alone.

From McDSP 4020 Retro EQ v7, continue to matching editions, relevant McDSP bundles and processors that address corrective equalization or resonance control. Recheck McDSP 4020 Retro EQ v7 availability, compatibility and upgrade terms at the destination because those commercial details can change after this guide’s verification date.
